Dynamic vs. Static: Understanding Computation Graphs in PyTorch and JAX

Updated on April 30, 2025 6 minutes read

How does your deep‑learning code “remember” the operations it just executed so it can automatically compute gradients?
In this deep‑dive we unpack the anatomy of computation graphs and explain why PyTorch and JAX—two powerhouse libraries that dominate today’s research and production stacks—take radically different approaches. By the end you’ll understand the trade‑offs, pick the right tool for your next project, and gather practical tips you can apply immediately.

📚 Want structured, mentor‑led practice? Apply to our next Data Science and AI Bootcamp and master both frameworks from first principles to deployment.

1 What is a Computation Graph?

A computation graph is a directed‑acyclic graph (DAG) where

• Nodes represent values (tensors, scalars, RNG states)
• Edges represent operations that transform inputs into outputs

During training we build two intertwined graphs:

1. Forward graph – charts data flow from inputs to loss
2. Backward graph – created by the autodiff engine so gradients can propagate from the loss back to parameters

Because the graph is just data, libraries can:

• Reorder/fuse ops for speed
• Slice away unused branches (multi‑task models)
• Serialize the graph to run on different hardware or runtimes

Why a DAG, not a general graph? Cycles imply a value depends (directly or indirectly) on itself. We avoid that by unrolling loops or linking recurrent edges to previous‑time‑step nodes, so each iteration still forms a DAG.

Throughout the article we’ll toggle between two mindsets:

• Tape – “record everything as we go and replay it backward.”
• Trace – “peek at the function’s structure before running it, then hand the static graph to a compiler.”

2 PyTorch: Dynamic “Define‑By‑Run” Graphs

PyTorch’s lineage values flexibility. Every time your Python lines execute, PyTorch creates a fresh graph in C++. The grad_fn chain you see when you print a tensor is the visible tip of that iceberg.

import torch

a = torch.randn(3, requires_grad=True)
b = torch.randn(3, requires_grad=True)

c = (a * b).sum()
print(c.grad_fn)  # <SumBackward0 object at …>

c.backward()

How the engine works

1. Forward pass – each differentiable op subclasses torch.autograd.Function and pushes a node onto the autograd tape
2. Backward pass – on tensor.backward(), the C++ engine topo‑sorts nodes in reverse and accumulates gradients on leaf tensors

Perks of dynamism

Pitfalls

• In‑place ops (tensor += 1) may discard needed history
• Detached tensors when converting to NumPy and back
• Memory blow‑ups if loops build graphs without torch.no_grad()

3 JAX: Staged, Static Graphs via Tracing

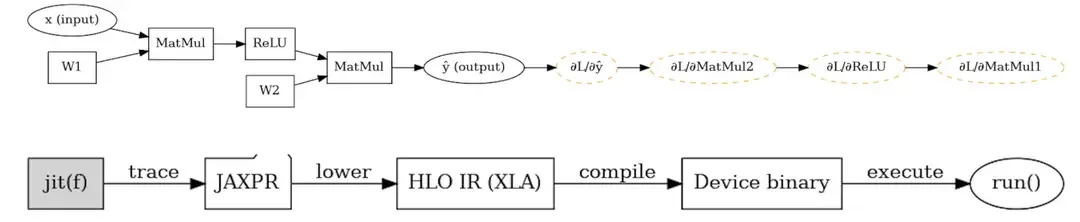

JAX marries Autograd with XLA and a functional mindset. You write pure functions; JAX executes in three stages:

1. Tracing – intercept Python and build a JAXPR (SSA‑style IR)
2. Compilation – lower JAXPR to HLO, fuse kernels, emit binary for device
3. Execution – cache binary; subsequent calls bypass Python entirely

import jax, jax.numpy as jnp

@jax.jit  # stage‑out entire function
def network(x, w):
    return jnp.tanh(x @ w)

print(jax.make_jaxpr(network)(jnp.ones((1,4)), jnp.ones((4,4))))

Trademark superpowers

Pain points

• Compile latency – seconds for big models
• Purity constraints – no side‑effects in a jitted region
• Debugging – think in graphs, not imperative traces

4 Hands‑On Comparison

Control flow

# PyTorch
def coin_net(x, w1, w2):
    return torch.relu(x @ w1) if torch.rand(()) < 0.5 else torch.sigmoid(x @ w2)

# JAX
def coin_net(x, key, w1, w2):
    branch = jax.random.bernoulli(key)
    return jax.lax.cond(branch,
                        lambda _: jnp.relu(x @ w1),
                        lambda _: jax.nn.sigmoid(x @ w2),
                        operand=None)

Micro‑benchmark

RTX 4090, CUDA 12, PyTorch 2.3, JAX 0.4.27 – compile time removed.

5 Graph Optimisation & Memory Tricks

Gradient checkpointing

# PyTorch
from torch.utils.checkpoint import checkpoint
out = checkpoint(block, x)

# JAX
out = jax.checkpoint(block)(x)

SPMD & model parallelism

• PyTorch: torchrun, FSDP, tensor parallel plugins
• JAX: pmap, pjit, GSPMD partition specs

Mixed precision

PyTorch: torch.cuda.amp.autocast()
JAX: set dtype=jnp.float16; XLA handles loss scaling

6 Debugging Workflows You’ll Actually Use

Tip: Combine torch.cuda.memory_summary() or XLA_PYTHON_CLIENT_MEM_FRACTION env var to watch memory live.

7 Advanced Use‑Cases

1. Meta‑learning – PyTorch’s higher‑order autograd vs. JAX’s jax.hessian
2. Probabilistic programming – Pyro vs. NumPyro
3. Differentiable physics – PyTorch3D vs. BraX
4. Large‑scale RL – Meta ReAgent (PyTorch) vs. DeepMind Acme (JAX)
5. Edge deployment – PyTorch Mobile vs. jax2tf → TFLite

8 Selecting the Right Tool (or Both!)

9 Conclusion

Computation graphs are the invisible scaffolding of modern deep learning. PyTorch’s dynamic tape feels like Python itself—immediate and malleable. JAX’s static graphs feel like a compiler—strict up front, blisteringly fast afterward. Mastering both gives you leverage across research prototypes and production inference.

Ready to bend graphs to your will? Apply to our next Data Science and AI Bootcamp—early‑bird spots vanish quickly!

FAQ

def dump_graph(t, visited=set(), depth=0):
    if t.grad_fn and t.grad_fn not in visited:
        visited.add(t.grad_fn)
        print('  ' * depth, t.grad_fn)
        for nxt, _ in t.grad_fn.next_functions:
            if nxt is not None:
                dump_graph(nxt, visited, depth+1)

def count_ops(f, *args):
    jaxpr = jax.make_jaxpr(f)(*args)
    return len(jaxpr.jaxpr.eqns)
print('Ops:', count_ops(network, jnp.ones((1,4)), jnp.ones((4,4))))
